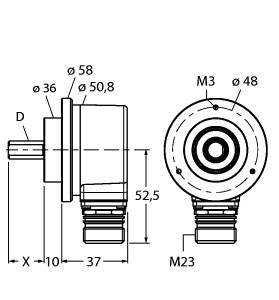

RI-10T10C-4B5000-12M23

Clamping flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5…30 VDC, Male connector, M23 x 1, 12-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 5000 pulses per revolution
