RI-10S6S-2B1024-12M23

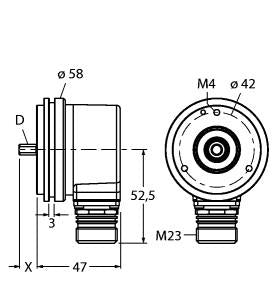

Servo flange, Ø 58 mm, Solid shaft, Ø 6mm x 10mm, Optical measuring principle, Shaft material, stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, M23 male, 12-pin, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
